HY-70 Wire Cutting And Stripping Machine

Product Features

Machine is designed with the newest speed adjustable gearbox;

Includes full-automatic servo motors,stainless steel machine covers,stainless steel pressing keys,NSK guides and bearings;

5inch Chinese-English LCD screen,friendly man-machine information pressing button;

100 programs stored can be used and transferred freely,which makes no wastage of your wires,a lot of stored help information makes your processing procedure more simple and more accurate;

The wire feeding in and out wheels are all adopted with air raising function, which can reduce the power of labor greatly, also the machine has function of logic error correcting, urgent function, and safe protection function, which makes you use the machine more easily and freely.

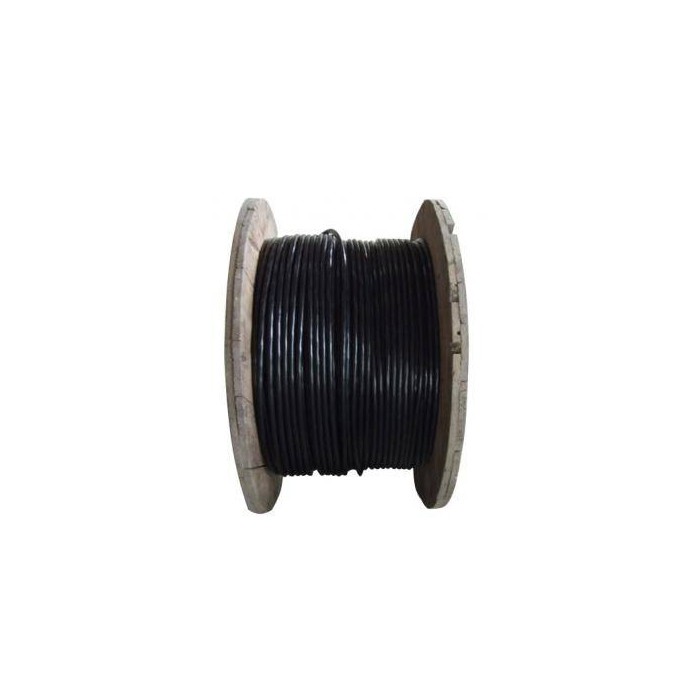

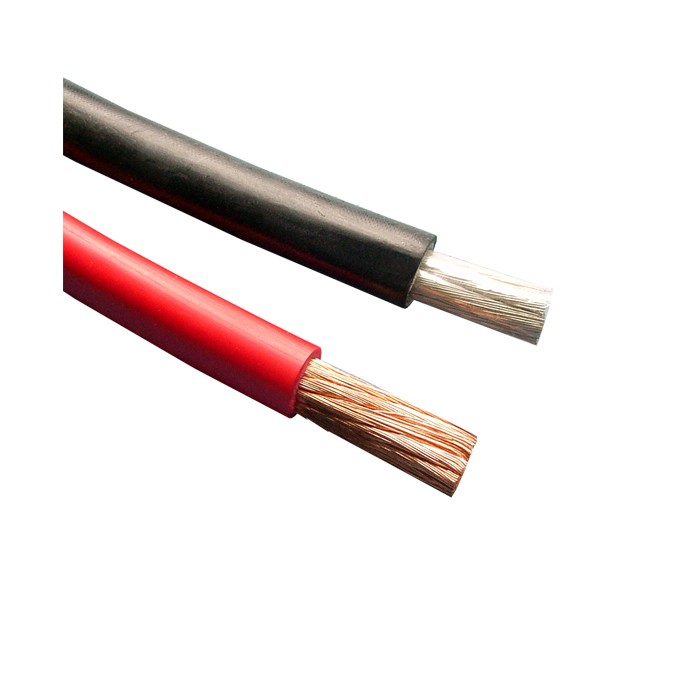

Machine is the full automatic machine which is very suitable for cable,new energy cable cut off,single side and double sides stripping,semi-stripping,secondary second layer stripping which is suitable for a big mass or little quantity production of multi-cable ,new energy cable (diameter is 4-20mm)and the biggest processing wire size is 80 sqr mm/ for new energy cable is 50 sqrmm;

Change cable ,just need to replace the pipe and the blades;

The function of self-compensation can greatly reduce the length tolerance;

For the special commission of the second stripping head of the new energy cable ,the outside can be peeled off,stripped again the insulation layer of shield inside,both the head of front and back can be stripped by first time and second time .

Techical Parameters

Size :                L1000 ×W600×H1200mm

Weight :              120KGS

Voltage :              AC220V

Cutting Lenght :        250-99999mm

Cutting Tolerance :      Less than 0.1% of total length

Stripping Length :       A 1-500mm ;B 1-200mm

Processing Capacity :    Diameter 4-20mm multi core cable; 10-50/80 sqr mm PVC cable
