HY-20X

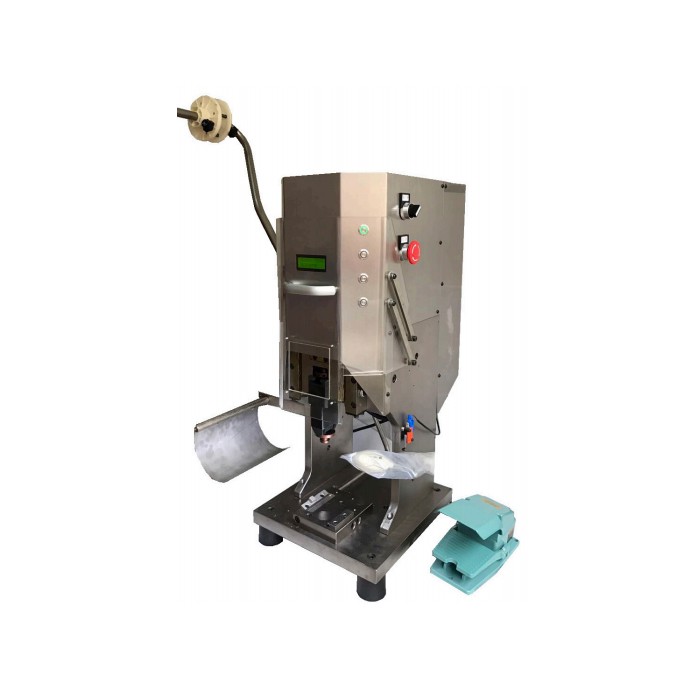

Terminal Crimping Machine HY-20X
Properties:
■Precise: Crimping height can be adjusted continuously,with tolerance
accurately to 0.03mm
■Quick: Match to all kinds of applicators, quick and convenient change
■Stable: Simple structure,stable & reliable operation
■Economical: Do work at crimp instant only and save energy
■Quite: Low noise, suitable for home basis production
■Safe: Special over-load protection,operate in safety
Technical specifications:
Force | 20KN |
Power | 0.75KW |
Cross Section Range | Up to 4mm2 (Material thickness up to 0.4mm) |
Stroke | 121.7mm/135.788mm (5.34") |
Stroke | 30mm/40mm |
Adjusting Range | 10mm/6mm |
Stroke Per minute | 160-200s.p.m |
Press Activation | Foot Pedal |
Noise Level | <70 dB(A) |
Power | 220VAC, 50/60HZ |
Capacity | Max. 750VA |
Dimension(LXWXH) | 360X350X800mm |
Weight | 75kgs |
