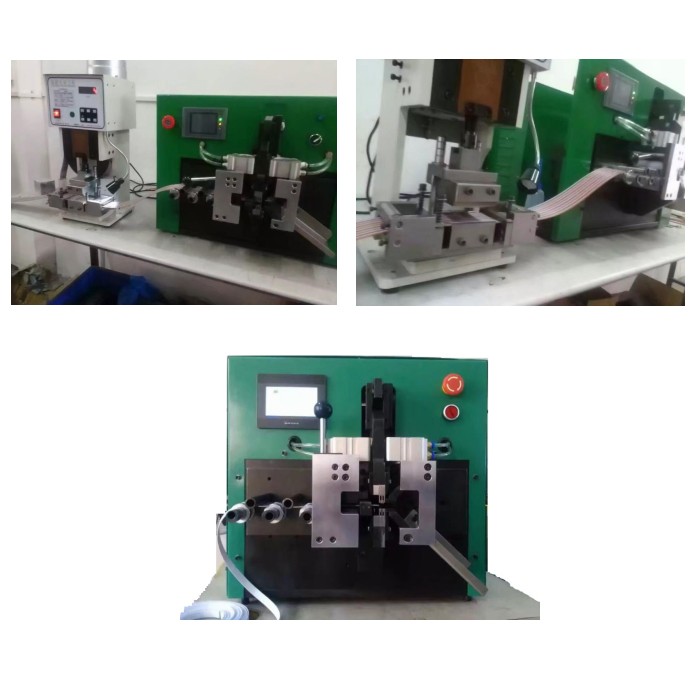

Flat Cable Processing Unit

This flat cable processing unit is included Pre-feeding ,Slitting unit and Cutting/ Stripping machine ;It can be used separately or in combination;This machine is made according to cable sample .

Function:

* Used for flat cable ,cutting / stripping/slitting/punching(U cut) at same time;

* Process flat cable with any separation distance;

* Machine adopts display,panel setting,simple operation,high precision;

* Machine adopts pneumatic work, which can save electricity;

* Machine can connect the punching machine,stamping machine ,etc., and fully automatic control through signal cable;

Processing Technical parameter:

* AWG18-32 Gray flat cable ;

* 0.635PH 1.0PH 1.27PH 1.5PH 1.75PH 2.0PH 2.5PH 2.54PH 3.96PH flat cable ;

* The precision can reach 0.2mm and the shortest cutting length is 10mm (According to cable specification);

* Can cut and stripping 1-4 pcs cable at once time (According to cable specification);

* Flat cable width up to 76.2mm (For example :2.54PH 30PIN);

* Can process 80 pin cable as like 2678;

* Can process 2651 2468 2678 4478 series cable ;

* Max. Cutting lenght is 99999mm;

* Full stripping or half-stripping can be choose.
